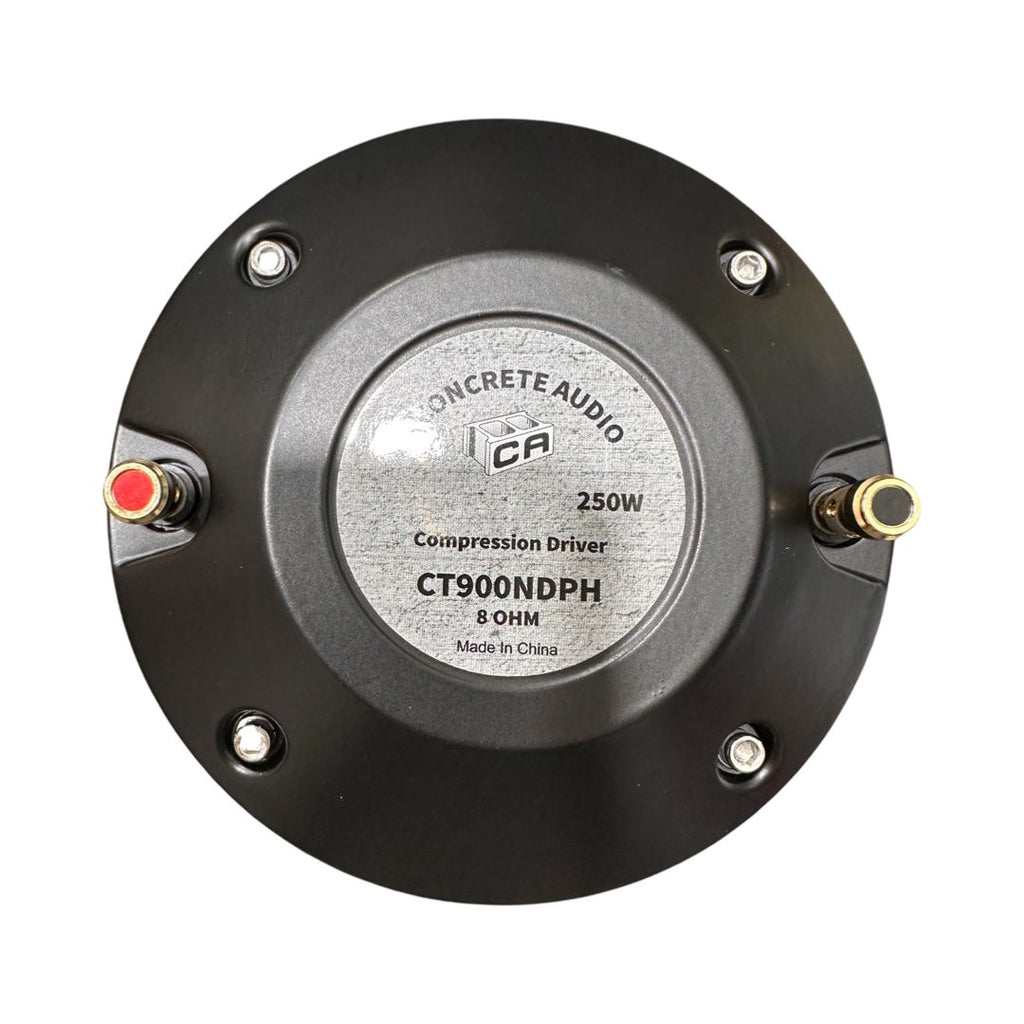

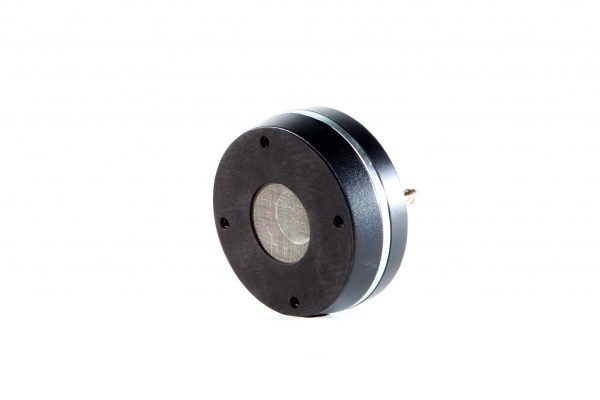

3″ Compression Horn Driver – High-Output Neodymium Mid/High Driver

Extend the mid-to-high frequency projection of your sound system with the Concrete Audio CT900NDPH 3″ Compression Horn Driver. Designed for pro audio, PA systems, and custom speaker cabinets, this high-performance compression driver combines a phenolic voice coil and diaphragm with a neodymium magnet for efficient, articulate sound output and excellent acoustic presence.

With a 250 W power handling, 8 ohm nominal impedance, and 109 dB SPL sensitivity, the CT900NDPH delivers strong, clear sound in demanding environments. Its compression horn design helps project audio with clarity and authority, making it ideal for live sound, club systems, and high-output speaker builds.

Key Specifications:

• Product: CT900NDPH Compression Horn Driver (Single)

• Throat Diameter: 2″

• Voice Coil Diameter: 3″

• Diaphragm Material: Phenolic

• Magnet: Neodymium

• Nominal Impedance: 8 ohms

• Power Handling: 250 W

• Frequency Response: 500 Hz – 10 kHz

• Sensitivity: 109 dB SPL (1 W/1 m)

• Mounting Type: Bolt-on compression horn driver

• Overall Depth: ~2.5″

• Magnet Diameter: ~5.25″

Perfect for custom PA cabinets, pro audio systems, and high-efficiency speaker builds, this compression driver delivers powerful projection and accurate midrange clarity.
